Smart Filter Pump Series M

Self priming, solvent socket d50/female thread 1 ½“, 230 V with prefilter, 6-29m3/h

Large Prefilter

• offers high filter quality
• avoids constant cleaning of filter in case of excessively dirty pool water
• suitable in comibination with salt electrolysis equipment

APPLICATION

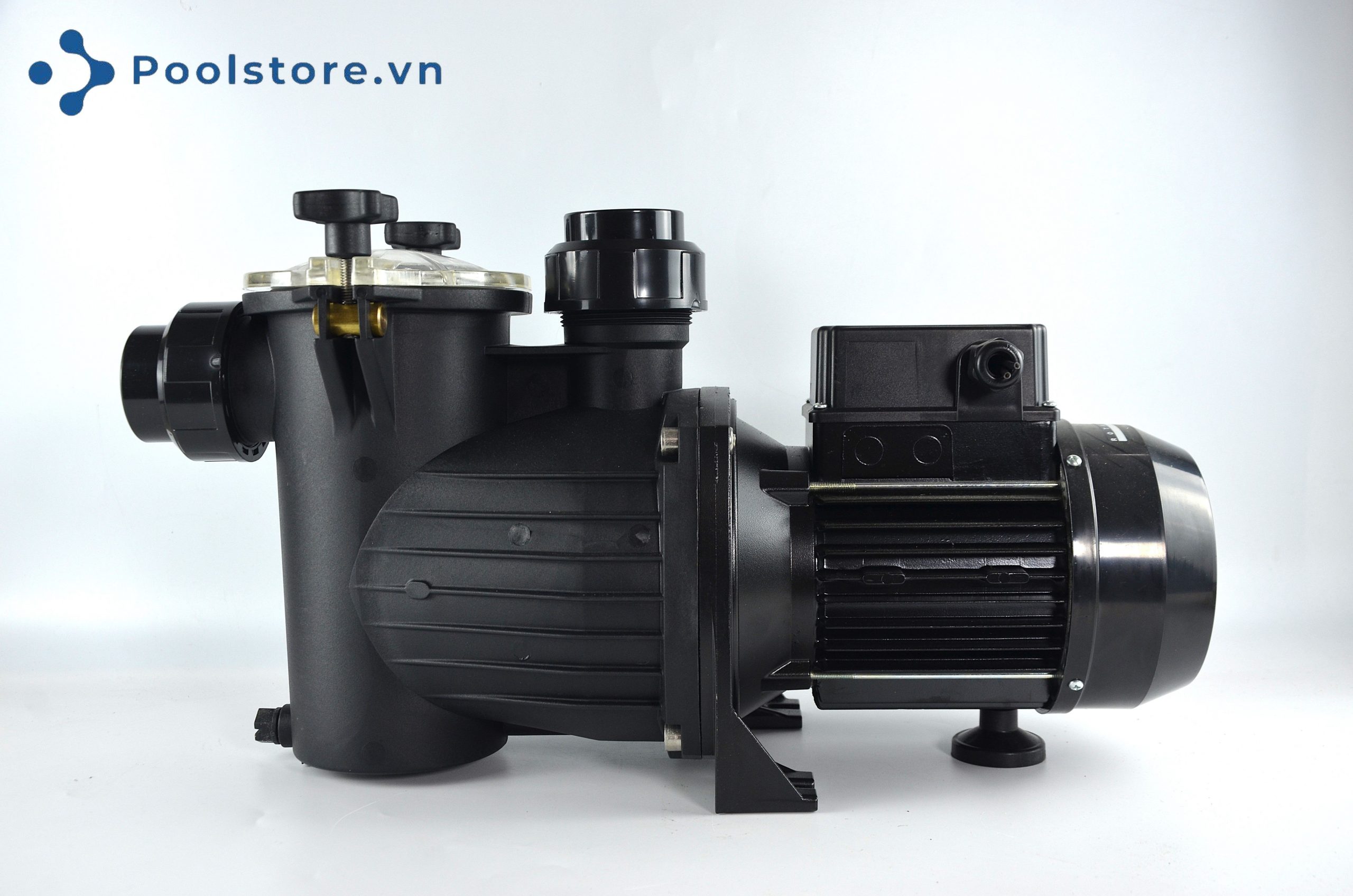

Electrical self priming pump for pools with large pre-filter, which, together with its excellent hydraulic performance, gives a very large filtering capacity. A filter with transparent, polycarbonate lid that easily allows inspection of the interior of the pre-filter sieve. No possible electrical contact with the water as no parat of the motor is in open to it.

MATERIAL

Pump body, lid and diffuser in polypropylene, resistant to the chemical products in the pools and reinforced with glass fibre, guaranteeing excellent duration. Shaft in stainless steel AISI316. Noryl impeller. Transparent lid in polycarbonate. Support base in aluminium. Mechanical seal in carbon-ceramic and stainless steel AISI316. Bolts in AISI304. The pump allows two possible connections: Female thread 1 ½”, Connection for PVC pipe d50 to glue

Motor

Asynchronus motor, sealed from external ventilation. Protection IP55. 2.850 rpm, 50 Hz (on request 60 Hz). Class F insulation. Motor bearings greased for life and selected to ensure long duration and silent working.
